Caddy with custom path

Caddy is a powerful and flexible web server that can be used to secure your Aura panel.

Installation​

First of all, create a directory for Caddy.

mkdir -p /opt/aura/caddy && cd /opt/aura/caddy

Then create a docker-compose.yml file.

touch docker-compose.yml && nano docker-compose.yml

And add the following content to the file:

docker-compose.yml
services:
    aura-caddy:
        image: aura/caddy-with-auth:latest
        container_name: 'aura-caddy'
        hostname: aura-caddy
        restart: always
        environment:
            - AUTH_TOKEN_LIFETIME=3600
            - REMNAWAVE_PANEL_DOMAIN=PANEL_DOMAIN
            - REMNAWAVE_CUSTOM_LOGIN_ROUTE=supersecretroute
            - AUTHP_ADMIN_USER=LOGIN_USERNAME
            - AUTHP_ADMIN_EMAIL=LOGIN_EMAIL
            - AUTHP_ADMIN_SECRET=LOGIN_PASSWORD

        ports:
            - '0.0.0.0:443:443'
        networks:
            - aura-network
        volumes:
            - ./Caddyfile:/etc/caddy/Caddyfile
            - aura-caddy-ssl-data:/data

networks:
    aura-network:
        name: aura-network
        driver: bridge
        external: true

volumes:
    aura-caddy-ssl-data:
        driver: local
        external: false
        name: aura-caddy-ssl-data

Configuring .env variables​

You need to set a domain name for your Aura panel. Caddy will automatically issue a certificate for it.

REMNAWAVE_PANEL_DOMAIN=panel.domain.com

Custom login route. This path will be used ONLY for the login page. There will be no redirect if you open the dashboard without being previously authenticated. Only people who know this path will be able to access the panel.

REMNAWAVE_CUSTOM_LOGIN_ROUTE=supersecretroute

Admin credentials. Make sure to use a strong password.

AUTHP_ADMIN_USER=admin
AUTHP_ADMIN_EMAIL=admin@domain.com
AUTHP_ADMIN_SECRET=strong_password

Token lifetime.

AUTH_TOKEN_LIFETIME=3600

Caddyfile​

Lets deep dive into the Caddyfile.

First of all, you need to select one of our predefined setups.

к сведению

We recommend using full security setup with MFA for production environments where you will be issuing API-keys.

осторожно

You will able to login only via this path (REMNAWAVE_CUSTOM_LOGIN_ROUTE).

Full security setup with MFA​

  • All routes are protected by authentication. (Frontend, Backend)
  • All API-endpoints are protected, includes /api/sub/* endpoints.
  • Login requires MFA with OTP-codes.
  • Special API-keys can be issued for /api/* endpoints.
  • Full domain protection.

Run the command below to download the Caddyfile.

curl -o Caddyfile https://raw.githubusercontent.com/remnawave/caddy-with-auth/refs/heads/main/examples/custom-webpath-with-auth-and-protected-api-route/Caddyfile

API routes without auth (api/*)​

  • Routes are protected by authentication. (Frontend)
  • Login requires MFA with OTP-codes. (Frontend)
  • All API-endpoints are not protected! (/api/* is public)
осторожно

This setup exposes the /api/* endpoints to the public internet.

All endpoints will not require authentication, but will still use the Aura security features.

We recommend using full security setup with MFA for production environments where you will be issuing API-keys.

Run the command below to download the Caddyfile.

curl -o Caddyfile https://raw.githubusercontent.com/remnawave/caddy-with-auth/refs/heads/main/examples/custom-webpath-with-auth-with-api-without-auth/Caddyfile

/api/sub/* endpoints without auth​

  • Routes are protected by authentication. (Frontend)
  • Login requires MFA with OTP-codes. (Frontend)
  • Only /api/sub/* endpoints is public, other endpoints are protected.
осторожно

This setup exposes the /api/sub/* endpoints to the public internet.

We recommend using full security setup with MFA for production environments where you will be issuing API-keys and use @localzet/aura-subscriptions for public subscription page.

Run the command below to download the Caddyfile.

curl -o Caddyfile https://raw.githubusercontent.com/remnawave/caddy-with-auth/refs/heads/main/examples/custom-webpath-with-auth-with-opened-api-sub/Caddyfile

Running the container​

After you have selected one of the setups above, you can start the container with the following command.

docker compose up -d && docker compose logs -f

Accessing the panel​

After the container is running, you can access the panel at https://panel.domain.com/REMNAWAVE_CUSTOM_LOGIN_ROUTE.

On the first start, you will be prompted to add a MFA method.

We recommend using Google Authenticator.

Disable MFA​

If you want to completely disable MFA, you can do this by editing the Caddyfile.

Open the Caddyfile and change the following line:

cd /opt/aura/caddy && nano Caddyfile

Find the following lines, and remove the require mfa line.

Caddyfile
transform user {
	match origin local
	action add role authp/admin
	require mfa
}

After that, you can restart the container with the following command.

docker compose down && docker compose up -d && docker compose logs -f

Accessing Auth Portal page​

к сведению

You can access the Auth Portal page at https://<your-domain>/REMNAWAVE_CUSTOM_LOGIN_ROUTE/auth.

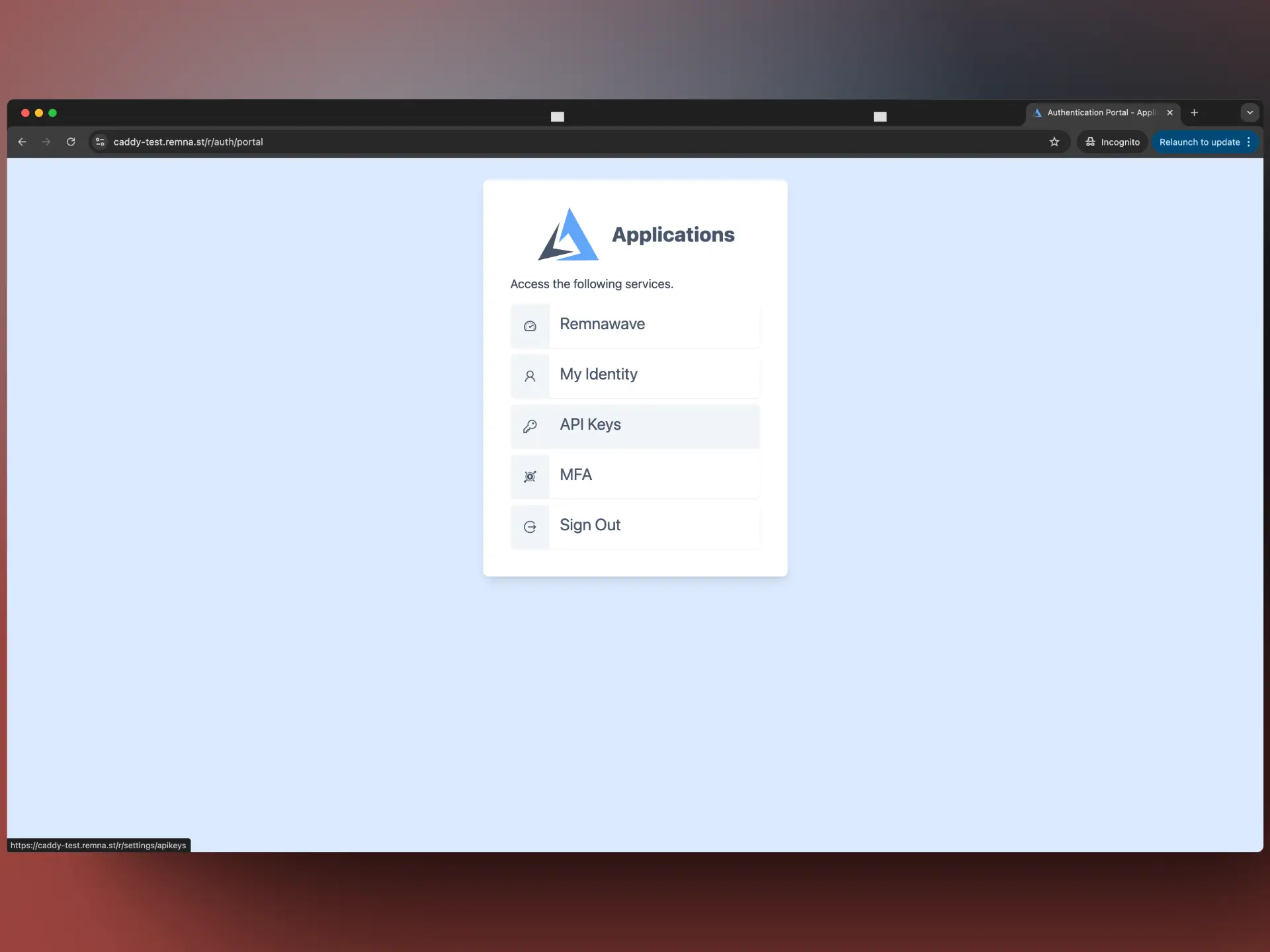

Auth Portal page

Here you can quickly go to the Aura dashboard or manage some of Auth Portal settings.

In the MFA section, you can delete or add new MFA methods.

Issuing API-keys​

к сведению

You can access the Auth Portal page at https://<your-domain>/REMNAWAVE_CUSTOM_LOGIN_ROUTE/auth.

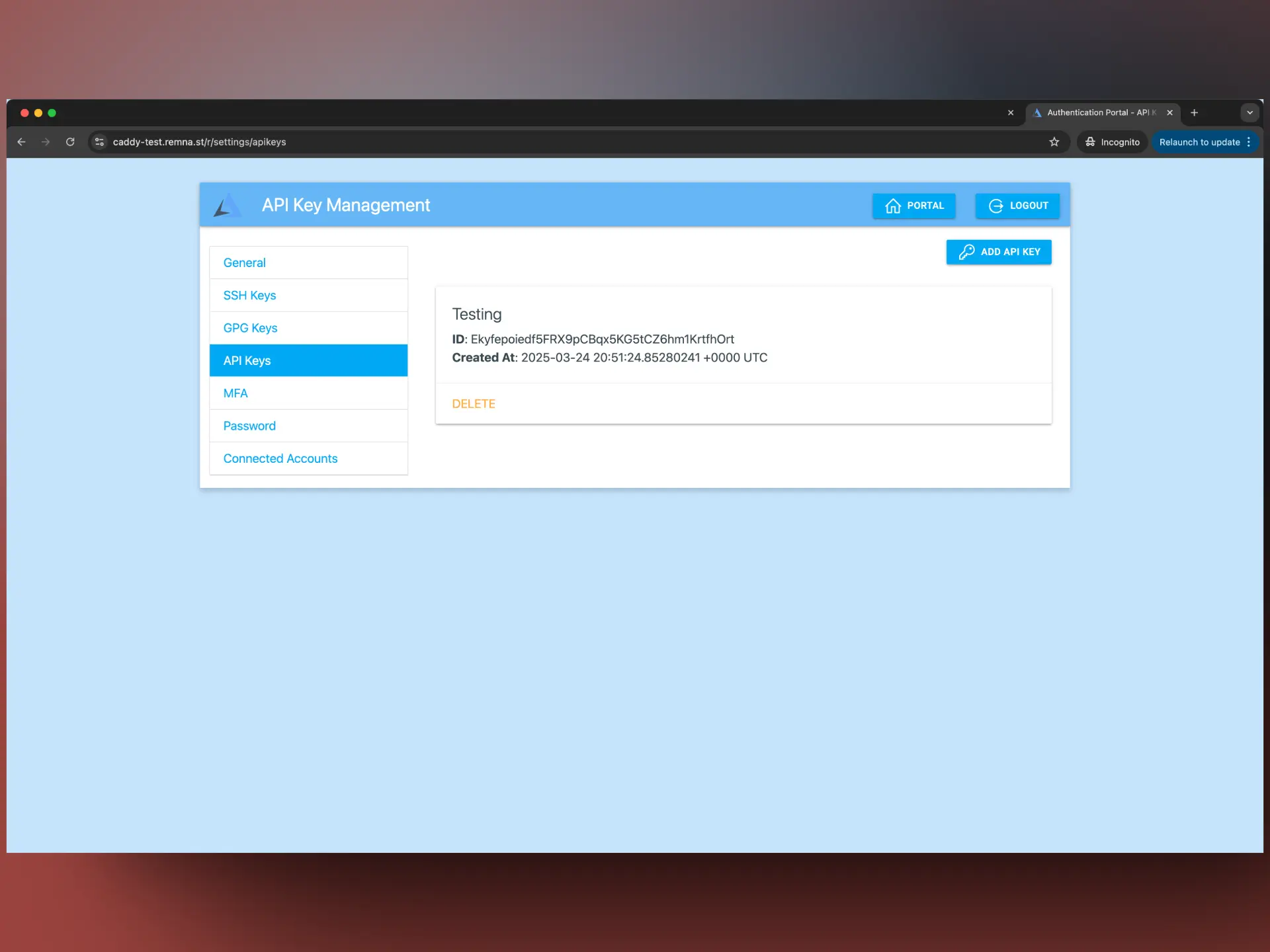

On the Auth Portal page, you can issue API-keys, click on the API-keys tab.

к сведению

After you issue an API-key, you can use it in the X-Api-Key header of your requests to the API.

Example: X-Api-Key: YxOovHLnpkcmSig5082egcHnyTk8SK4dNGAFHgZ2LKZezgj5oUj2FA2IR2sMwbALnP9YNpzZ

API-keys
